Abdal 4iProto Proxy (Multi-Hop)

Abdal 4iProto Proxy is a high-performance, transparent TCP/UDP proxy designed to sit in front of backend services — including Abdal 4iProto Server — and forward traffic safely and efficiently.

It is built specifically for the Abdal 4iProto ecosystem and supports nested Multi-Hop deployments:

Client → Proxy A → Proxy B → Target

tip

Prefer a dedicated Abdal proxy over manual iptables when you need independent TCP/UDP paths, access control, and Multi-Hop chaining. For classic Linux NAT gateway rules, see Full Traffic Forwarding (iptables).

Why This Software Was Created

Abdal 4iProto Proxy solves a practical networking problem:

• You need a protocol-agnostic relay that does not inspect or rewrite application payloads
• You want independent TCP and UDP forwarding paths
• You need basic security controls (connection limits, IP filtering, flood protection at application level)
• You may chain multiple proxy instances: Client → Proxy A → Proxy B → Target

For Abdal 4iProto SSH / direct-udpip traffic, this proxy treats the stream as plain TCP bytes and forwards them unchanged. Separately, it also provides a full native RAW UDP relay for applications that send real UDP datagrams.

Part of the Abdal 4iProto Ecosystem

Abdal 4iProto Proxy is designed to work alongside Abdal 4iProto Client/Server as a transparent hop, without becoming an application-layer parser for 4iProto itself.

Ecosystem Benefits

• Hiding the original client IP from the destination — the destination usually sees the IP of the last proxy or the 4iProto server
• Harder traffic attribution — correlating traffic back to the real origin typically requires reconstructing a multi-hop path
• Network separation per hop — each hop only observes its own inbound/outbound relationship
• Content security for 4iProto traffic — when traffic travels inside SSH/4iProto, proxies only relay encrypted payloads
• Higher analysis cost with Multi-Hop — chaining proxies increases the cost of traffic analysis and path reconstruction

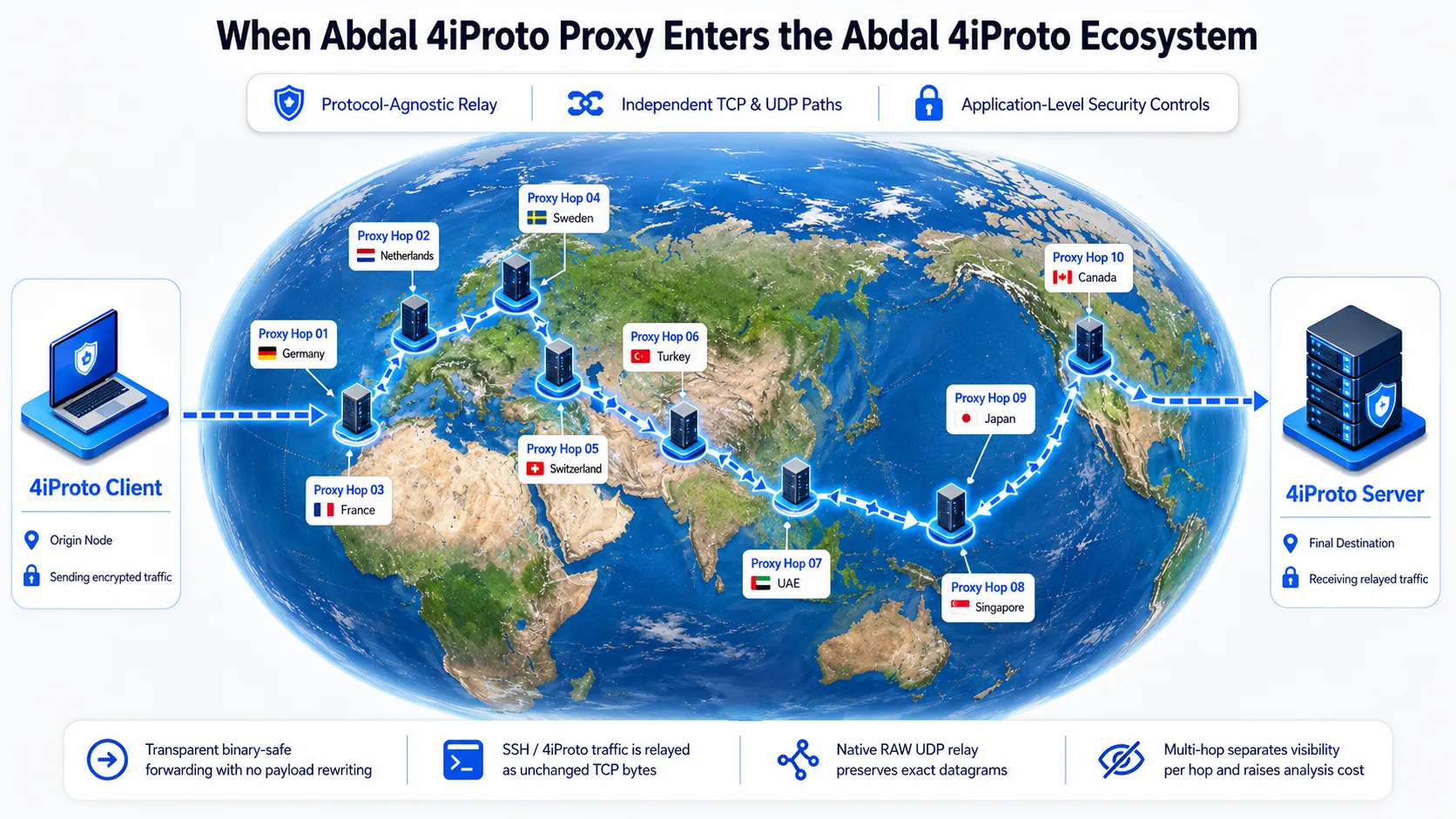

Typical ecosystem path:

4iProto Client
      |
      v
Proxy Hop A  --->  Proxy Hop B  --->  Proxy Hop C
      |
      v
4iProto Server / Final Target

Features

Core Proxying

• Independent TCP proxy (TCP → TCP)
• Independent UDP proxy (UDP → UDP)
• Enable/disable TCP and UDP separately via config
• Multi-port listening on both protocols
• Transparent, binary-safe forwarding (no payload rewriting)
• Compatible with chained proxy deployments

TCP Path

• Full-duplex TCP relay
• Idle timeout support
• Protocol-agnostic byte-stream forwarding
• Suitable for SSH / 4iProto TCP tunnels without parsing SSH or direct-udpip

UDP Path

• Session-based stateful UDP associations (Client IP + Source Port)
• One persistent upstream socket per association (NAT-friendly)
• Multi-response UDP support (1 request → N responses)
• Exact datagram preservation (including zero-length datagrams)
• Large receive buffer (65535 bytes) to reduce truncation risk
• Identity-safe session lifecycle

Security

• Max connections per IP
• Max total connections
• Application-level connection flood auto-blacklist
• Static whitelist / blacklist (IP or CIDR)
• Dynamic blacklist with TTL
• Optional loop-prevention checks

Operations

• JSON configuration file
• Colored console logging
• Graceful shutdown
• Windows / Linux service install support
• Cross-platform Go build

How It Works

                     +-> TCP relay -> Target TCP
Client -> Proxy -----|
                     +-> UDP relay -> Target UDP

Path A — Abdal 4iProto over TCP

4iProto Client
      |
      | SSH/TCP (may contain direct-udpip inside)
      v
Abdal 4iProto Proxy
      |
      | unchanged TCP byte stream
      v
Abdal 4iProto Server

The proxy does not parse SSH, does not implement direct-udpip, and does not add/remove framing.

Path B — Native RAW UDP

UDP Application
      |
      | native UDP datagrams
      v
Abdal 4iProto Proxy
      |
      | unchanged UDP datagrams
      v
UDP Target / next proxy hop

Each client endpoint creates one UDP association. Packets are forwarded verbatim. Upstream responses are continuously relayed back to the same client endpoint.

How to Use

Requirements

• Go 1.21+ (for building from source)
• A writable directory for the binary and config file

Build

go build -o abdal-4iproto-proxy .

Configure

Edit abdal-4iproto-proxy.json:

{
  "server_ip": "192.168.10.10",
  "enable_tcp_proxy": true,
  "enable_udp_proxy": true,
  "tcp_ports": [42690],
  "udp_ports": [42690],
  "security": {
    "max_connections_per_ip": 50,
    "max_total_connections": 2000,
    "enable_connection_flood_protection": true,
    "tcp_idle_timeout_seconds": 300,
    "udp_association_timeout_seconds": 60,
    "enable_loop_prevention": true,
    "blacklist_entry_ttl_seconds": 3600
  },
  "access_control": {
    "whitelist": ["10.0.0.0/8"],
    "blacklist": ["1.2.3.4"]
  }
}

Run

./abdal-4iproto-proxy

Or with a custom config path:

./abdal-4iproto-proxy -config /path/to/abdal-4iproto-proxy.json

Service Mode

# Install as system service
./abdal-4iproto-proxy -install-service

# Run as service
./abdal-4iproto-proxy -service

# Uninstall service
./abdal-4iproto-proxy -uninstall-service

Configuration Reference

Key	Description
server_ip	Upstream/target server IP or hostname
enable_tcp_proxy	Independently enable/disable TCP proxy
enable_udp_proxy	Independently enable/disable UDP proxy
tcp_ports	Local TCP listen ports to forward
udp_ports	Local UDP listen ports to forward
max_connections_per_ip	Per-IP active connection/session limit
max_total_connections	Global active connection/session limit
enable_connection_flood_protection	Auto-blacklist IPs that hit per-IP limits
tcp_idle_timeout_seconds	TCP idle timeout
udp_association_timeout_seconds	RAW UDP association idle timeout
enable_loop_prevention	Detect obvious localhost proxy loops
blacklist_entry_ttl_seconds	Dynamic blacklist lifetime
access_control.whitelist	Always-allowed IPs/CIDRs
access_control.blacklist	Always-blocked IPs/CIDRs

Useful Examples

• TCP only: "enable_tcp_proxy": true, "enable_udp_proxy": false
• UDP only: "enable_tcp_proxy": false, "enable_udp_proxy": true
• Both: keep both flags true

warning

udp_association_timeout_seconds belongs to this proxy’s RAW UDP associations. It is not the Abdal 4iProto Server SSH direct-udpip idle timeout.

Repository

• GitHub: https://github.com/ebrasha/abdal-4iproto-proxy
